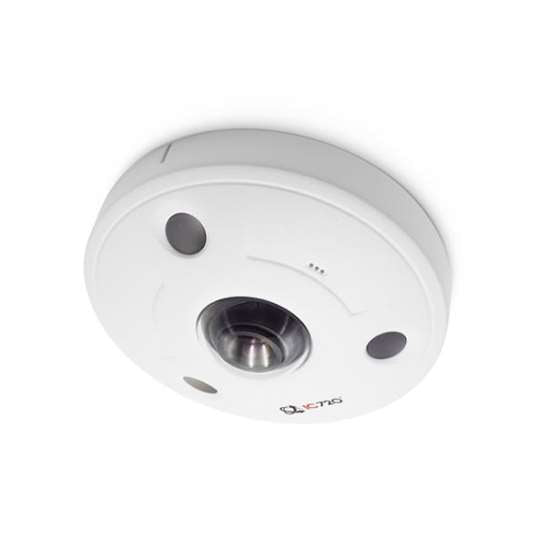

IC Realtime IPEL-F12F-IRW2
Details
IC Realtime's latest 12MP IR fisheye IP camera is the best all-around security camera ever made. IPEL-F12F-IRW2 delivers a real-time, 12MP simultaneous view & recording over a massive 180° observation area that can be "de-warped" into a standard flat view for review or direct real-time situational awareness. This latest IRW2 version adds a dual microphone audio pickup array/speaker combination and our latest FlexSmartAi built-in intelligence features, making IPEL-F12F-IRW2 the industry's smartest wide-area camera choice.
THE ALL-SEEING "SKY EYE"
Developed as a single point, 180° coverage tool, this single-camera location will see & hear everything around it - all at the same time - in each video frame. This 180° "fisheye" frame with simultaneous audio capture makes IPEL-F12F a unique & invaluable resource for complete area audio & video awareness. This special wide-area video & audio coverage provides situational context for retail loss management, detention area overwatch, and a bird's eye perspective for production area oversight in manufacturing & fulfillment supervision. IPEL-F12F's tough IK10 impact resistance and IP67 weather rating & internal heater mean it can perform in challenging areas such as school lunchrooms, parking lots, or public spaces like entrance plazas & lobby areas.
12MP PUT TO WORK
IPEL-F12F-IRW2's 12MP IR Fisheye network camera stream utilizes a densely packed 4000 x 3000-pixel video sensor. This density renders incredibly detailed native 180° fisheye views using the camera's 1.85mm spherical aspect fixed focus lens system, supplemented under 0.01 lux ambient light by 32+ feet of IR illumination. That ultra-detailed 180° stream is then electronically de-warped as desired into standard camera views for human observation & analysis - and for the camera's own even more unblinking & perceptive FlexSmartAI detection system.
THE BEST USE FOR POE & AI
Artificial Intelligence is at its best when working on tasks that require detailed & unwavering 24/7 attention. Humans find it hard to do, making IC Realtime's IPEL-F12F-IRW2 the best in the business. It has the most advanced AI skill set in the industry - FlexSmartAI. The system’s algorithm-enhanced motion detection capabilities are excellent right out of the box, and the system's deep learning capability means they will learn & get better over time. They include IVS Perimeter protection with customizable tripwire & intrusion zones, Heat Mapping, People Counting, and even Queue (people in line) management & alerts. The camera can even directly display & export custom human traffic reports.
UNDENIABLE RECORDS
For comprehensive forensic review, no other technology can equal the IPEL-F12F's ability to simultaneously see & record everything that happens across an entire area, providing objective, undeniable eye-witness evidence. This 12MP fisheye camera captures and replays high-definition audio and video.
The live or recorded stream can be electronically de-warped into standard flat video frame views to observe any specific area. When the camera's legally permissible, time-stamped video watermarks are enabled, video & audio evidence from the IPEL-F12F's is virtually undeniable.
PART OF THE TEAM
Built as a team player, IPEL-F12F-IRW2 shares this AV & detection datastream with its paired FlexSmartAI NVR. When installed with one of our state-of-the-art FlexSmartAi NVRs, the IPEL-F12F-IRW2 and NVR form an interactive video/audio system to become the most flexible, complete, and cost-effective AI analysis system available today.
It's hard to overstate the advantages of live audio & video oversight and time-stamped recorded digital records enabled by this revolutionary single-point 180° view 12MP fisheye security camera. IPEL-F12F's ability to see, hear, capture, and even verbally interact with a wide area cannot be duplicated with any other technology. 180° video, alarm ports, audio I/O jacks, dual-mic audio pickup, and a built-in interactive talkback speaker make this unique IP camera an irreplaceable addition to any IP video system.
THE ALL-SEEING "SKY EYE"
Developed as a single point, 180° coverage tool, this single-camera location will see & hear everything around it - all at the same time - in each video frame. This 180° "fisheye" frame with simultaneous audio capture makes IPEL-F12F a unique & invaluable resource for complete area audio & video awareness. This special wide-area video & audio coverage provides situational context for retail loss management, detention area overwatch, and a bird's eye perspective for production area oversight in manufacturing & fulfillment supervision. IPEL-F12F's tough IK10 impact resistance and IP67 weather rating & internal heater mean it can perform in challenging areas such as school lunchrooms, parking lots, or public spaces like entrance plazas & lobby areas.
12MP PUT TO WORK
IPEL-F12F-IRW2's 12MP IR Fisheye network camera stream utilizes a densely packed 4000 x 3000-pixel video sensor. This density renders incredibly detailed native 180° fisheye views using the camera's 1.85mm spherical aspect fixed focus lens system, supplemented under 0.01 lux ambient light by 32+ feet of IR illumination. That ultra-detailed 180° stream is then electronically de-warped as desired into standard camera views for human observation & analysis - and for the camera's own even more unblinking & perceptive FlexSmartAI detection system.
THE BEST USE FOR POE & AI
Artificial Intelligence is at its best when working on tasks that require detailed & unwavering 24/7 attention. Humans find it hard to do, making IC Realtime's IPEL-F12F-IRW2 the best in the business. It has the most advanced AI skill set in the industry - FlexSmartAI. The system’s algorithm-enhanced motion detection capabilities are excellent right out of the box, and the system's deep learning capability means they will learn & get better over time. They include IVS Perimeter protection with customizable tripwire & intrusion zones, Heat Mapping, People Counting, and even Queue (people in line) management & alerts. The camera can even directly display & export custom human traffic reports.
UNDENIABLE RECORDS
For comprehensive forensic review, no other technology can equal the IPEL-F12F's ability to simultaneously see & record everything that happens across an entire area, providing objective, undeniable eye-witness evidence. This 12MP fisheye camera captures and replays high-definition audio and video.
The live or recorded stream can be electronically de-warped into standard flat video frame views to observe any specific area. When the camera's legally permissible, time-stamped video watermarks are enabled, video & audio evidence from the IPEL-F12F's is virtually undeniable.
PART OF THE TEAM
Built as a team player, IPEL-F12F-IRW2 shares this AV & detection datastream with its paired FlexSmartAI NVR. When installed with one of our state-of-the-art FlexSmartAi NVRs, the IPEL-F12F-IRW2 and NVR form an interactive video/audio system to become the most flexible, complete, and cost-effective AI analysis system available today.
It's hard to overstate the advantages of live audio & video oversight and time-stamped recorded digital records enabled by this revolutionary single-point 180° view 12MP fisheye security camera. IPEL-F12F's ability to see, hear, capture, and even verbally interact with a wide area cannot be duplicated with any other technology. 180° video, alarm ports, audio I/O jacks, dual-mic audio pickup, and a built-in interactive talkback speaker make this unique IP camera an irreplaceable addition to any IP video system.
Specifications
| Camera | |
| Image Sensor: | 1/1.7” 12 Megapixel STARVIS™ CMOS |
| Effective Pixels: | 4000(H) x 3000(V) |
| RAM/Rom: | 2GB/ 4GB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.001Lux/F2.8( Color1/3s30IRE) 0.01Lux/F2.8( Color1/30s30IRE) 0Lux/F2.8(IR on) |
| S/N Ratio: | More than 50dB |
| Illumination Distance: | Distance up to 10m(33ft) |
| Illumination On/Off Control: | Auto/ Manual |
| Illumination LEDs: | 3 |
| PIR Sensor Range: | N/A |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed |
| Mount Type: | Board-in |
| Focal Length: | 1.85mm |
| Max. Aperture: | F2.0 |
| Angle of View: | H: 185 degrees V:180 degrees |
| Focus Control: | Fixed |
| Close Focus Distance: | 1.31ft (0.4 m) |
| DORI - Detect: | 131 ft |
| DORI - Observe: | 52 ft |
| DORI - Recognize: | 26 ft |
| DORI - Identify: | 13 ft |
| Intelligence | |
| IVS: | Tripwire, Intrusion |
| Advanced Intelligent Functions: | Heat Map |
| Video | |
| Compression: | H.265; H.264; H.264H; MJPEG (Only supported by the sub stream) |
| Streaming Capability: | 3 Streams |
| Resolution: | 4000 × 3000; 3280 × 2480; 2880 × 2160; (3M) 2048 × 1536; 1.3M (1280 × 960); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate: | Main stream: 4000 × 3000@(1–25/25 fps) Sub stream: 704 × 576@(1–25/30 fps) Third stream: 1280 × 960@(1–17/17 fps) |
| Bit Rate Control: | CBR/ VBR |
| Bit Rate: | H264: 8 kbps–16384 kbps H265: 3 kbps–16384 kbps |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / DWDR |
| White Balance: | Auto / Natural / Street Lamp / Outdoor / Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D DNR |
| Motion Detection: | Off / On (4 Zones Rectangular) |
| Region of Interest: | Off / On (4 Zones) |
| Smart IR: | Supported |
| Flip: | N/A |
| Privacy Masking: | Off / On (4 Area Rectangle) |
| WDR: | DWDR |
| Audio | |
| Compression: | G.711a / G.711Mu / AAC / G.726 |
| Network | |
| Ethernet: | RJ-45 (100/1000Base-T) |
| Protocol: | HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP |
| Wifi: | N/A |
| Interoperability: | ONVIF (Profile S/Profile G/Profile T); CGI |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 20 (Total bandwidth: 240 M) |
| Edge Storage: | FTP Micro SD card 256GB |
| Management Software: | SmartICRSS, DSS |
| Smart Phone: | iPhone, iPad, Android |
| Interface | |
| Video Interface: | N/A |
| RS485: | N/A |
| Audio I/O: | 1/1 channel In/Out, built-in dual-array Mic and speaker |
| Alarm I/O: | 2 channel In: 5mA 5VDC / 2 channel Out: 1A 30VDC or 0.5A 50VAC |
| Factory Reset: | Yes |
| Memory Slot: | Micro SD Card 256GB |
| Electrical | |
| Power Supply: | DC12V PoE (802.3af)(Class 0) |
| Power Consumption: | Basic: 6.5W (12V DC); 6.1W (PoE) Max. (ICR + IR intensity): 13W (12V DC); 13.9W (PoE) Heating: 3W (12V DC); 3 W (PoE) |
| Environmental | |
| Operating Conditions: | –40 °F to +140 °F ( –40 °C to +60 °C) |
| Operating Humidity: | ≤95% |
| Ingress Protection: | IP67 |
| Vandal Resistance: | IK10 |
| Construction | |
| Casing: | Metal |
| Dimensions: | 2.35" × 5.90" (59.8 mm × 149.8 mm) |
| Gross Weight: | 2.67 lb (1.21 kg) |
