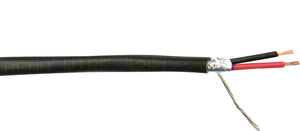

West Penn Wire 291 2 Conductor Shielded Mic/Low Voltage Communication and Control Cable 1000 Feet Black Reel-In-Box
291 BLACK - Overview
West Penn Wire 291BK1000 is a 1000-foot all-purpose communication cable with a black PVC jacket. This 291-series cable has 22/2 stranded bare copper conductors and shielded with an overall jacket. The 291 is ideal for a variety of applications, including: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits.
-
Features:
- 22 AWG
- 1000 Feet
- 2 BC Conductor
- Black PVC Jacket
-
Specifications:
- Conductor
- Number of Conductors: 2
- AWG Size: 22
- Conductor Stranding: 7x30
- Conductor Type: Bare Copper
- Nominal DCR: 17 Ohm/1000ft
- Cabling Lay Length: 2.5 in
- Twists/Foot: 4.8 twist/ft
Insulation - Insulation Type: Thermoplastic
- Insulation Thickness: 0.007 in
- Insulation Color Code: 1. Black 2.Red
Shielding Parameter - Shield Type: Overall 100% Aluminum Foil
- Drain Wire Type: Tinned Copper
- Drain Wire AWG: 24 AWG
Electrical Characteristics - Nom. Cap. Between Conductors: 34 pF/ft
- Nom. Cap. Conductor to Shield: 67 pF/f
Overall Construction Parameters - Jacket Type: PVC
- Jacket Thickness: 0.017 in
- Nominal Cable O.D.: 0.127 in
- Plenum: No
- NEC UL Rating: CMR, CMG
- RoHS Compliant: Yes
- Pull Tension: 24 lbs
- Bend Radius: 1.143 in
- Cable Weight: 14 lbs
Overall Electrical/Optical Characteristics - UL Flammability: UL1666 Vertical Shaft
- CSA Flammability: FT4
- Operating Range: 4° to 140°F (-20 to 60°C
- UL Voltage Rating: 300
-
Item Includes:
- 1x West Penn Wire 291 2 Conductor Shielded Mic Cable - 1000Ft - Black
